Features

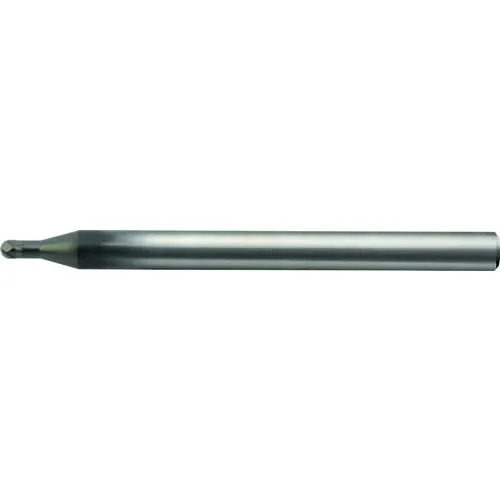

Long neck ball end mill that can cut carbide and hard brittle materials. (UDCLB Advanced Version)
Improved blade shape and diamond-coated UDC, greatly improved the removal volume of the processing
The grooves placed on the ball end provide an outstanding finishing surface, and the blade has been specially treated to maximize the amount of chips and step differences in the shredded material, making it suitable for a wide range of finishes.

Application
Compatible with: Hard brittle wood, carbide alloy, resin with glass

Specifications
Ball radius: R2.5 mm
Blade Length: 0.1 inches (3.5 mm)
Total Length: 2.4 inches (60 mm)
Shank diameter: 0.2 inches (6 mm)
Shank taper angle (Bta): 16°
Effective length: 3.9 inches (10 mm)
UDC coating.
2 blades long neck ball end mill UDCLBF

Note
Shank taper angle is estimate.
Please be sure to measure and check if interfere with work is required.
Please be careful of contact between the shank and work.
Please do not chuck the shank that has been coated around to prevent the blade from shaking.

• Product Dimensions ‏ : ‎ 2.69 x 0.53 x 0.42 inches; 0.85 ounces
• Date First Available ‏ : ‎ September 30, 2024
• Manufacturer ‏ : ‎ ユニオンツール(Union Tool)
