Features

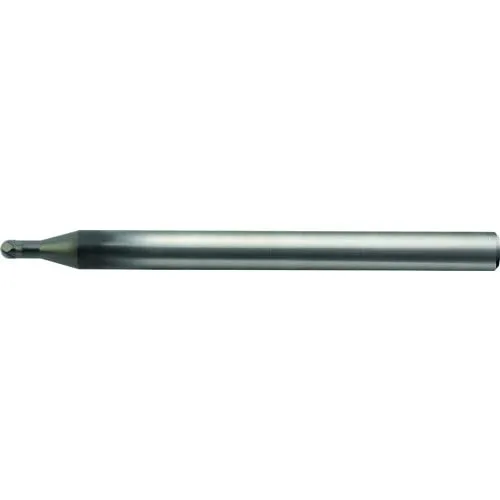

Long neck ball end mill that can cut carbide and hard brittle materials. (UDCLB Advanced Version)
The blade shape and diamond coating have been newly improved, and the removal volume has been greatly improved.
The grooves placed on the ball end provide an outstanding finishing surface, and the blade has been specially treated to maximize the amount of chips and step differences in the shredded material, and it is suitable for a wide range of finishes.

Application
Ball radius (R): R0.1
Blade Length: 0.04 gal (0.14 L)
Shank taper angle (Bta): 16°
Total Length: 1.7 gal (50 L)
Shank diameter: 1.4 ft (4 d)

Specifications
Blade Length: 0.006 inches (0.14 mm)
Total Length: 2.0 inches (50 mm)
Shank diameter: 0.2 inches (4 mm)
Ball radius: R0.1
Shank taper angle (Bta): 16°
Effective length: 1
UDC coating.
Twisting angle: 0°
2 blades long neck ball end mill UDCLBF

Note
Shank taper angle is estimate.
Please be sure to measure and check if interfere with work is required.
Please be careful of contact between the shank and work.
Please do not chuck the shank that has been coated around to prevent the blade from shaking.

• Product Dimensions ‏ : ‎ 2.69 x 0.53 x 0.42 inches; 17.81 Pounds
• Date First Available ‏ : ‎ September 29, 2024
• Manufacturer ‏ : ‎ ユニオンツール(Union Tool)
