Rear Hydraulic Valve Kit with Front Third Function for Kioti CX2510 Series Tractors (Two Spool) w/ Factory Installed Rear Remote

Models w/ KL2510 Loaders

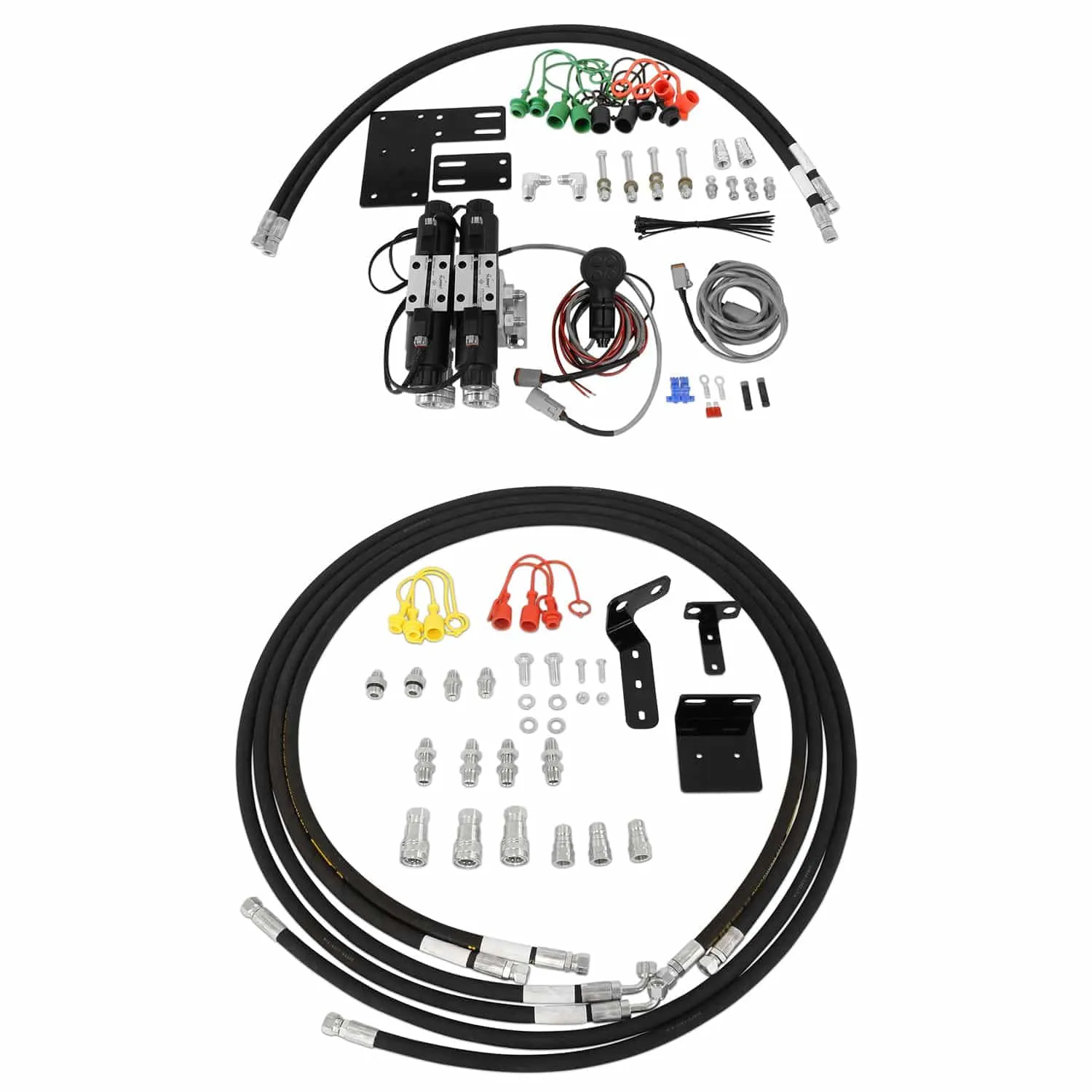

This all-in-one Kioti rear remote kit with front 3rd function is designed to install on your Kioti compact tractor CX2510 Series Tractors (w/ Factory Rear Remote installed) to add rear remote connections and a third function. This allows you to easily control various hydraulic implements in the front and rear using our Summit Hydraulics joystick and/or switchbox controls. You can add two rear remote coupler sets to your machine and a third function in the front.

The kit requires minimal basic tools. It will mount directly to your ROPS Bar. The kit will act independently from the other hydraulic valves on your machine.

Kioti w/ Rear Remotes will connect to the two “quick connect” on the rear remotes. These are the couplers often used to connect a backhoe and then are connected to each other when the backhoe is not in use.

NOTE: The rear remote connections on your machine will be 1/2″ Body AG ISO 5675 Female Couplers. The hoses for your implements will need male couplers.

Valve Body Features:

Solid aluminum housing designed for rugged use

Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI

Flow Rating: 15 GPM

Aluminum Body

3000 PSI Rated

Port Sizes:

Work Ports: #8 SAE (3/4 – 16 ORB) Female Thread

Pressure & Return Ports: #10 SAE (7/8- 14 ORB) Thread

Switch Features:

One 2 button momentary joystick

Valve harness uses Deutsch environmentally sealed connections for great functionality in harsh weather

Solenoid Specifications:

Nominal Voltage Tolerance /- 10%

Power Rating: 37 Watts

Amps: 3.08

100% Duty Cycle

• Date First Available ‏ : ‎ December 18, 2023
• Manufacturer ‏ : ‎ Summit Hydraulics
